3601B

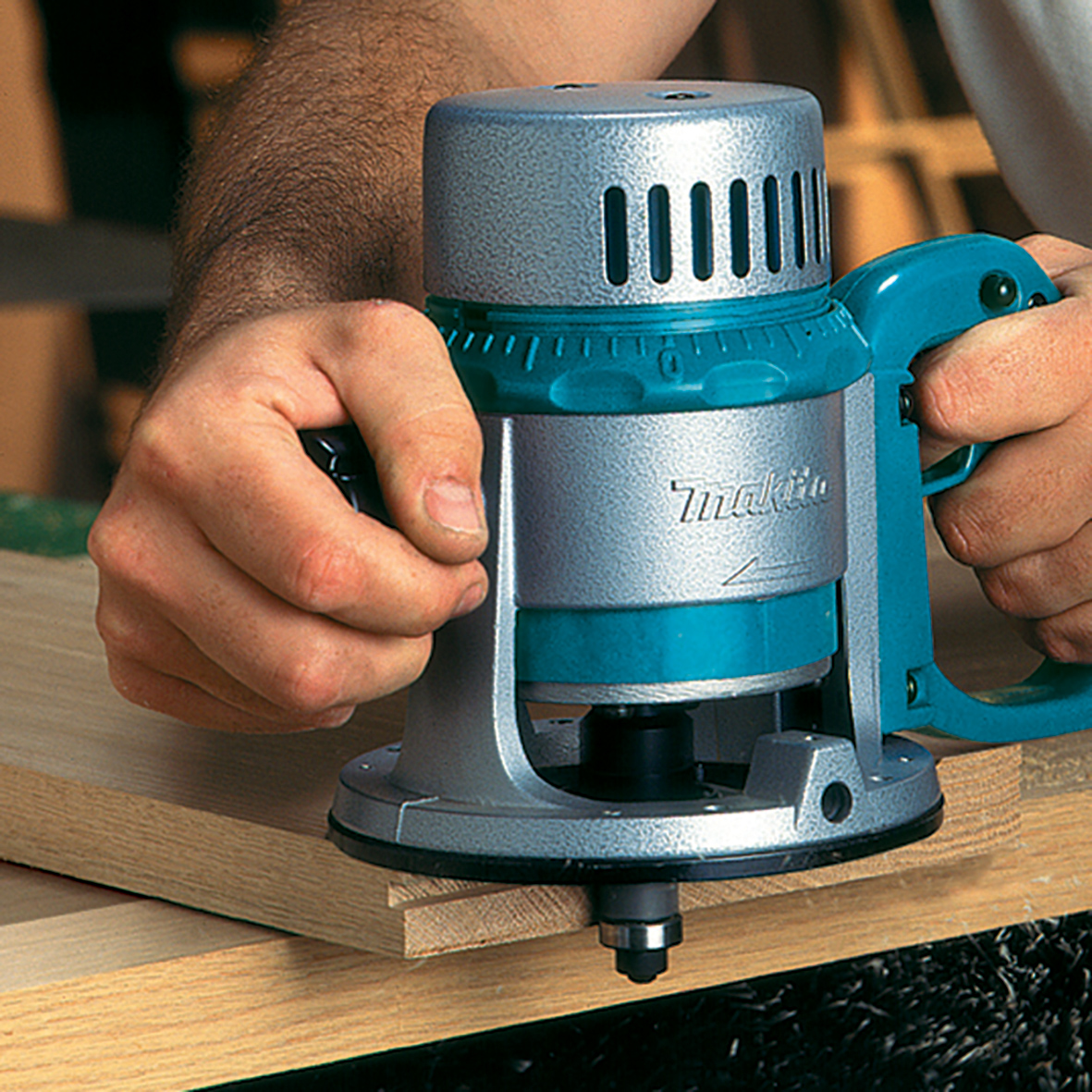

12.7mm (1/2") D-Handle Router

  • 3601B-12.7mm (1/2") D-Handle Router
  • 3601B-12.7mm (1/2") D-Handle Router
  • 3601B-12.7mm (1/2") D-Handle Router
  • 3601B-12.7mm (1/2") D-Handle Router

Features

    • Trigger switch inside handle loop
    • Rigid base with rotation ring depth adjustment
    • Heavy duty 1,050W* motor with 23,000rpm no load speed

    * Continuous rating input

Where To Buy
Product Manual
Parts Diagram
  • Continuous rating input
    1,050W
    Base inner
    40mm
    Base diameter
    ø 160mm
    Max. collet capacity
    12mm (1/2”)
    No load speed
    23,000rpm
    Noise
    93dB(A)
    Vibration
    3.5m/s2
    Overall length
    310mm
    Net weight
    3.8kg
    Voltage
    240V - Corded
    Power supply cord
    2.0m

  • Trimmer guide assembly

    straight guide assembly
    templet guide
    collet sleeve (1/4\")
    collet sleeve (3/8\")
    2 wrenches
    straight bit
