LS004GM201

40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit

  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit
  • LS004GM201- 40V Max Brushless 260mm (10-1/4”) Slide Compound Saw Kit

Features

    • Includes: 2x 4.0Ah Batteries (BL4040) & Rapid Charger (DC40RA)
    • Forward Rail Design maximises work space and provides smooth precise cutting

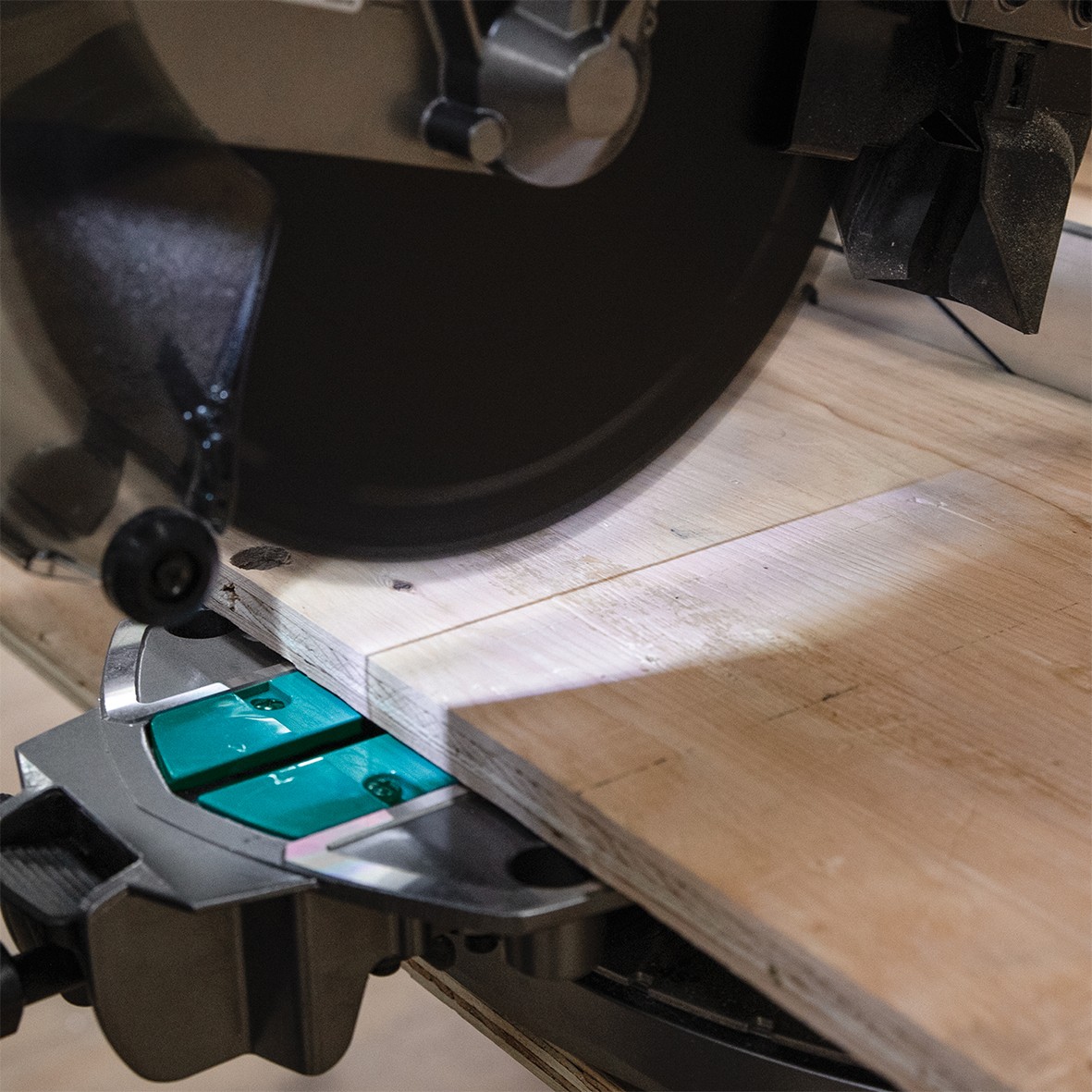

    • Shadow line projects cut line onto work material
    • Dual zone dust extraction ports suppress dust scattering of wood chips
    • Constant speed control maintains cutting speed under heavy load

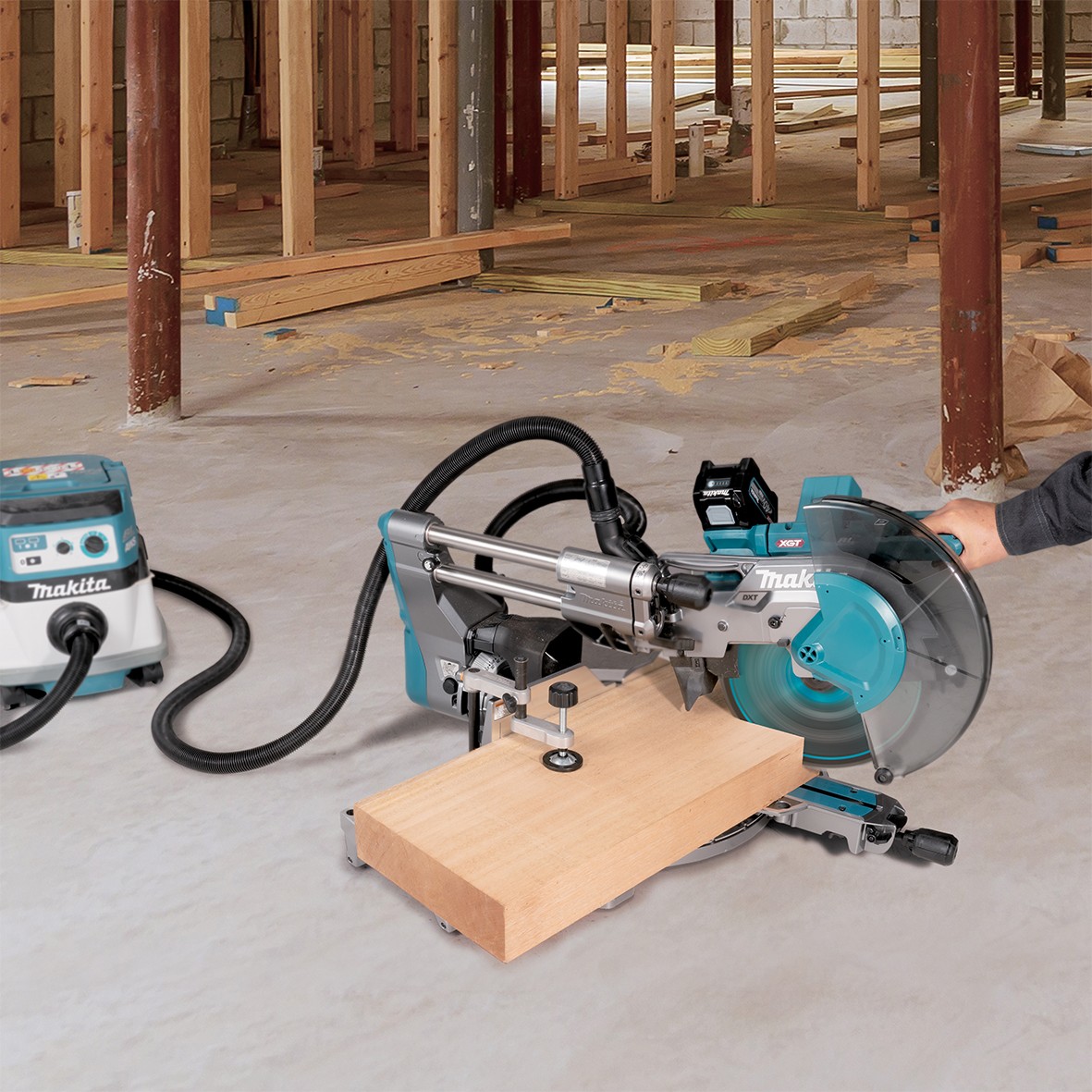

    • Compatible with AWS* for wireless connectivity with compatible dust extraction

    * Requires optional wireless transmitter

Where To Buy
Information Booklet
Product Manual
Parts Diagram
  • Tool included
    LS004GZ
    Battery included
    2 x 4.0Ah batteries (BL4040)
    Charger included
    Rapid charger (DC40RA)
    No load speed
    3,600rpm
    Overall length
    805mm
    Skin weight
    25.9kg
    Weight (with battery)
    26.9kg (BL4040)
    Voltage
    40V Max
    Bevel capacity
    48° left - 48° right
    Max. cutting capacities at 0°
    Max. width: 68 x 310mm
    Max. height: 91 x 279mm
    Max. cutting capacities at 50°
    Max. width: 68 x 218
    Max. height: 91 x 197
    Mitre capacity
    60° left - 60° right

  • 260mm 45T Efficut Wood Blade (B-64646)

    Vise Assembly (126617-2)
    Dust Bag Assembly(122852-0)
    Triangular Rule (762001-3)
    Hex Wrench 6 (781044-6)
