DTD172Z

18V Brushless 4-Stage Impact Driver

  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver
  • DTD172Z- 18V Brushless 4-Stage Impact Driver

Features

    • Maximum fastening torque of 180Nm for heavy duty applications
    • 4 stage speed selection & 4 Assist mode variations for optimised speed control

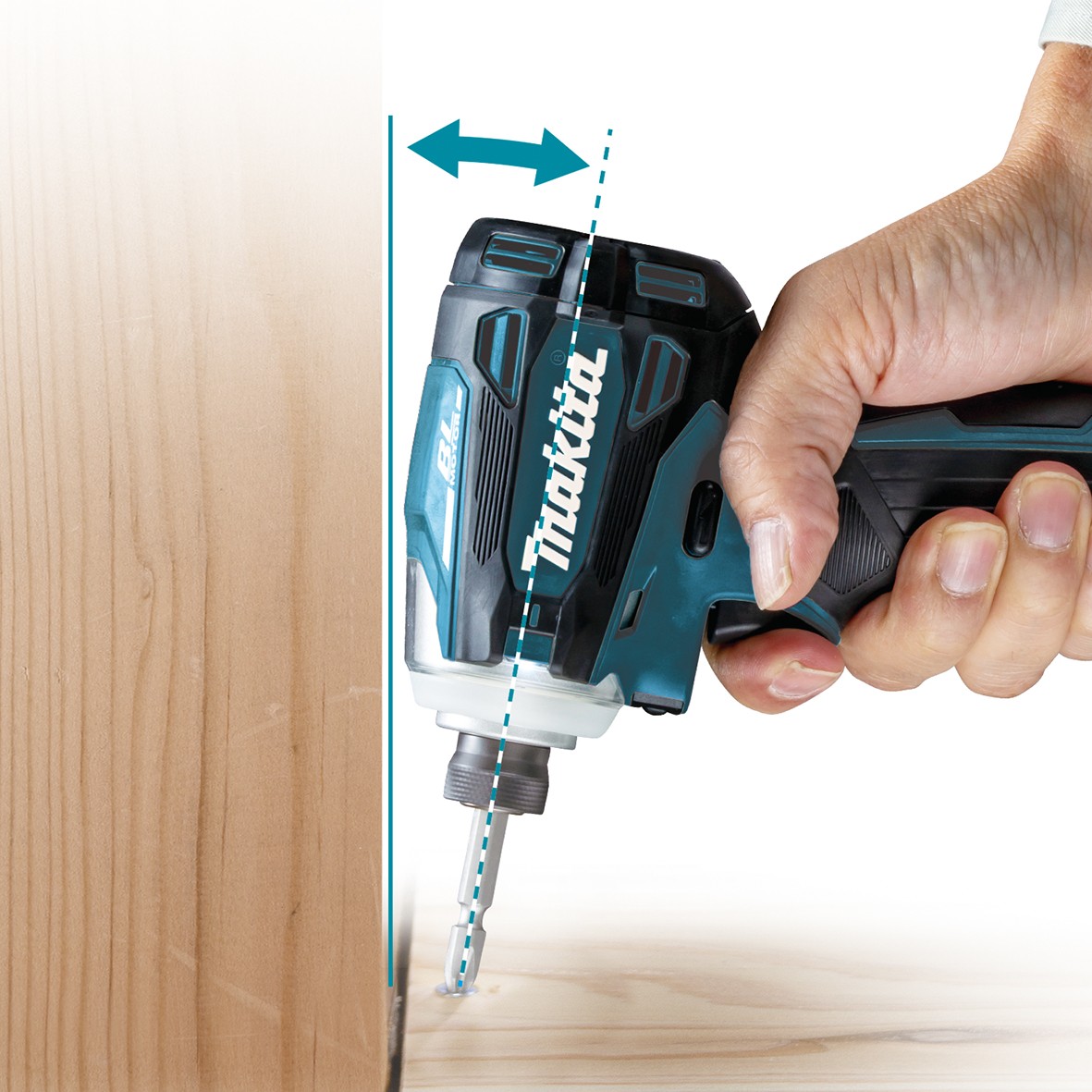

    • Compact design at 115mm in length for comfortable use in tight spaces

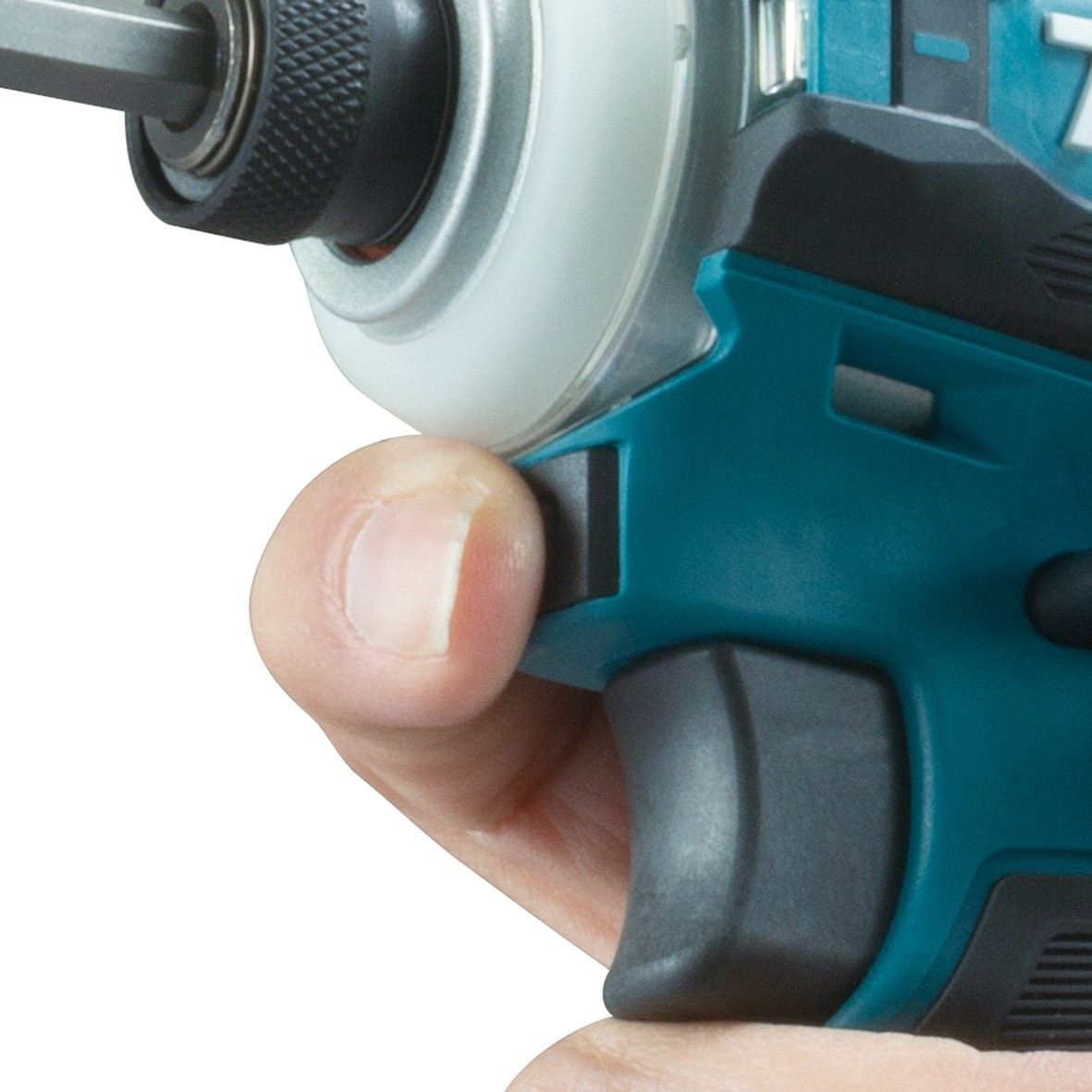

    • Quick switch button for single handed mode selection
    • Enhanced bit holder provides reduced bit wobble
Where To Buy
Information Booklet
Product Manual
Parts Diagram
  • Max. capacities standard bolt
    M5 -M16
    Max. capacities high tensile bolt
    M5 -M14
    No load speed
    Max.: 0 - 3,600rpm
    Hard: 0 - 3,200rpm
    Med: 0 - 2,100rpm
    Soft: 0 - 1,100rpm
    Impact rate
    Max.: 0 - 3,800ipm
    Hard: 0 - 3,600ipm
    Med: 0 - 2,600ipm
    Soft: 0 - 1,100ipm
    Max. tightening torque
    Max.: 180Nm
    Hard: 170Nm
    Med: 50Nm
    Soft: 20Nm
    Drive shank
    6.35mm(1/4") Hex
    Overall length
    114mm
    Skin weight
    0.9kg
    Weight (with battery)
    1.5kg (BL1860B)
    Voltage
    18V

  • Belt clip (346317-0)
