DTW302Z

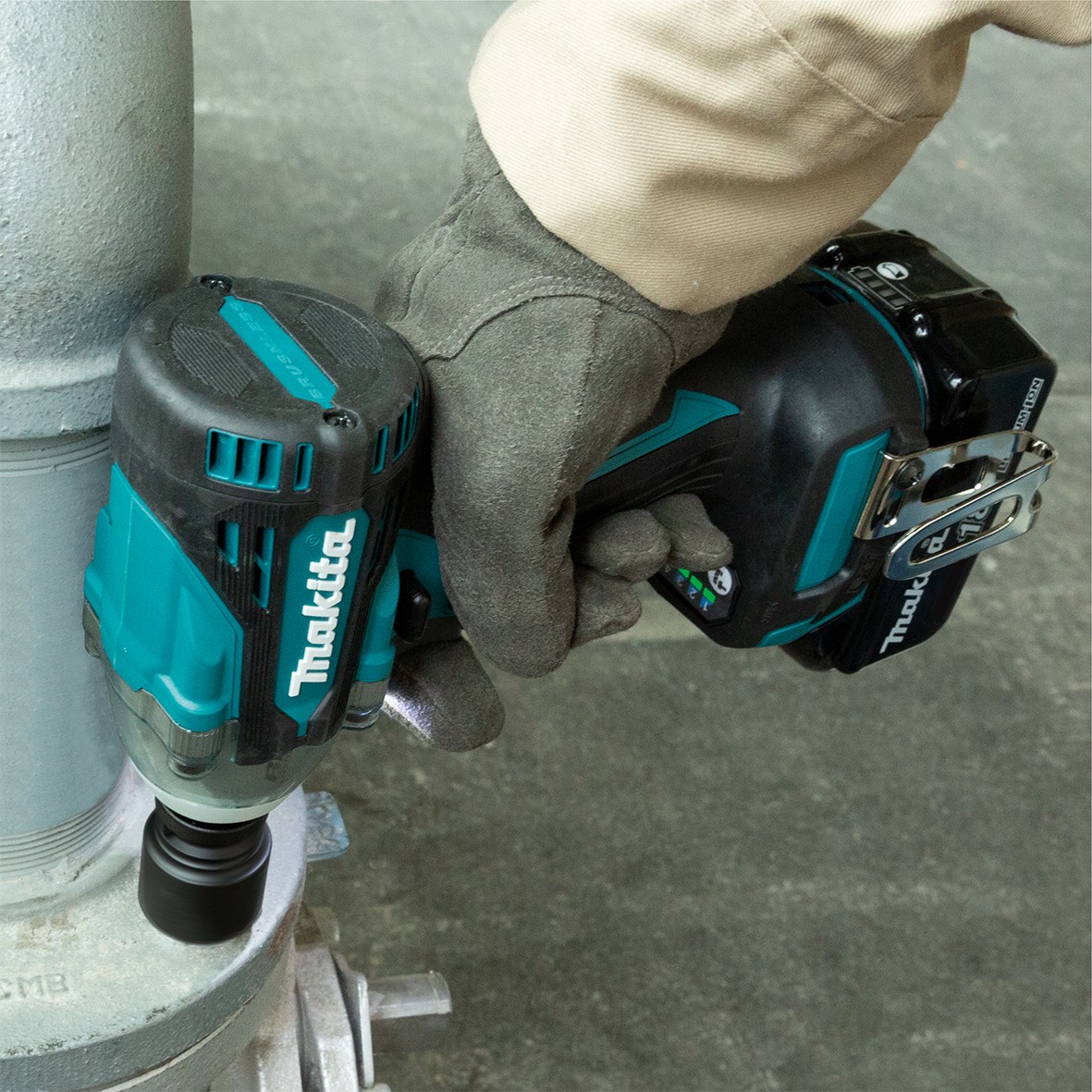

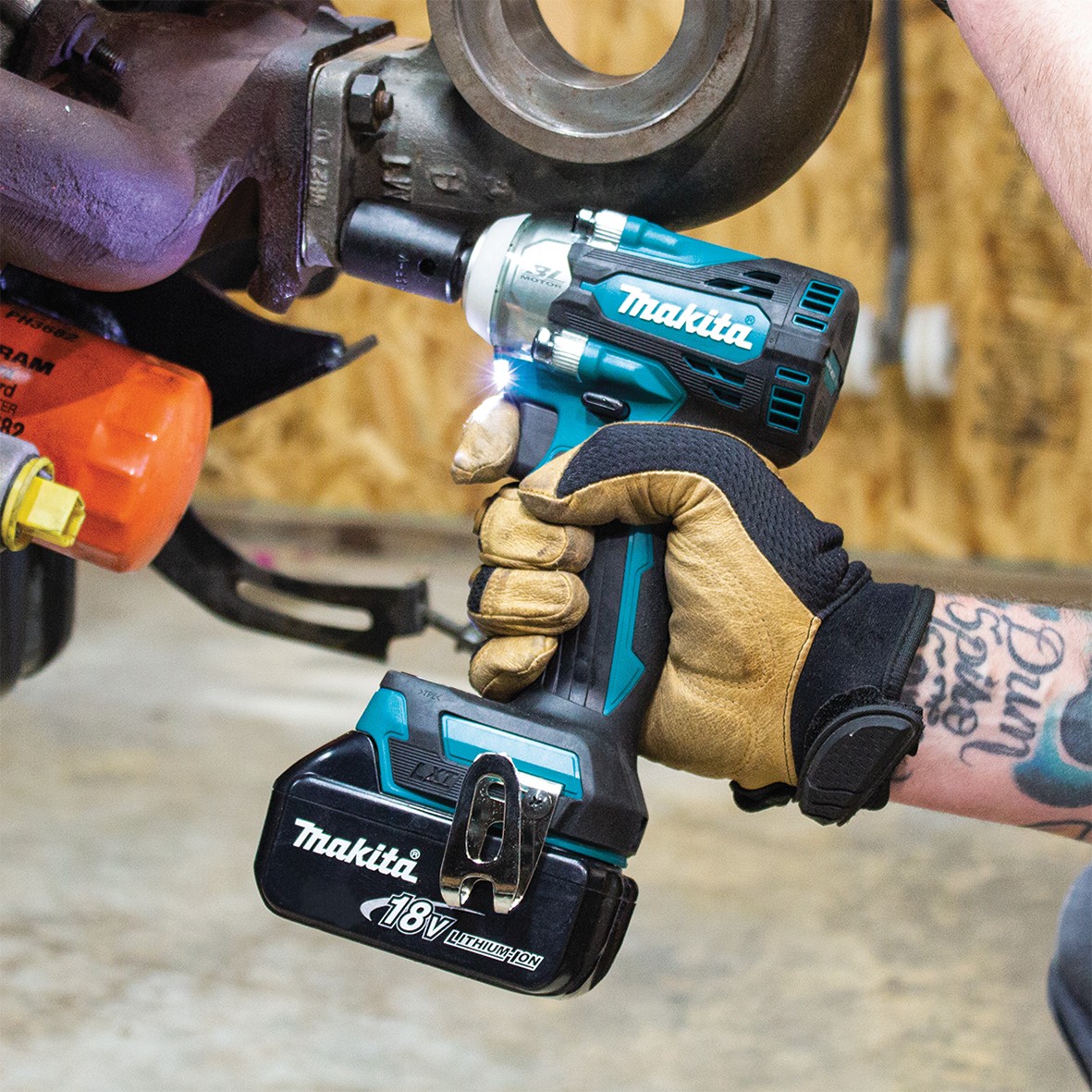

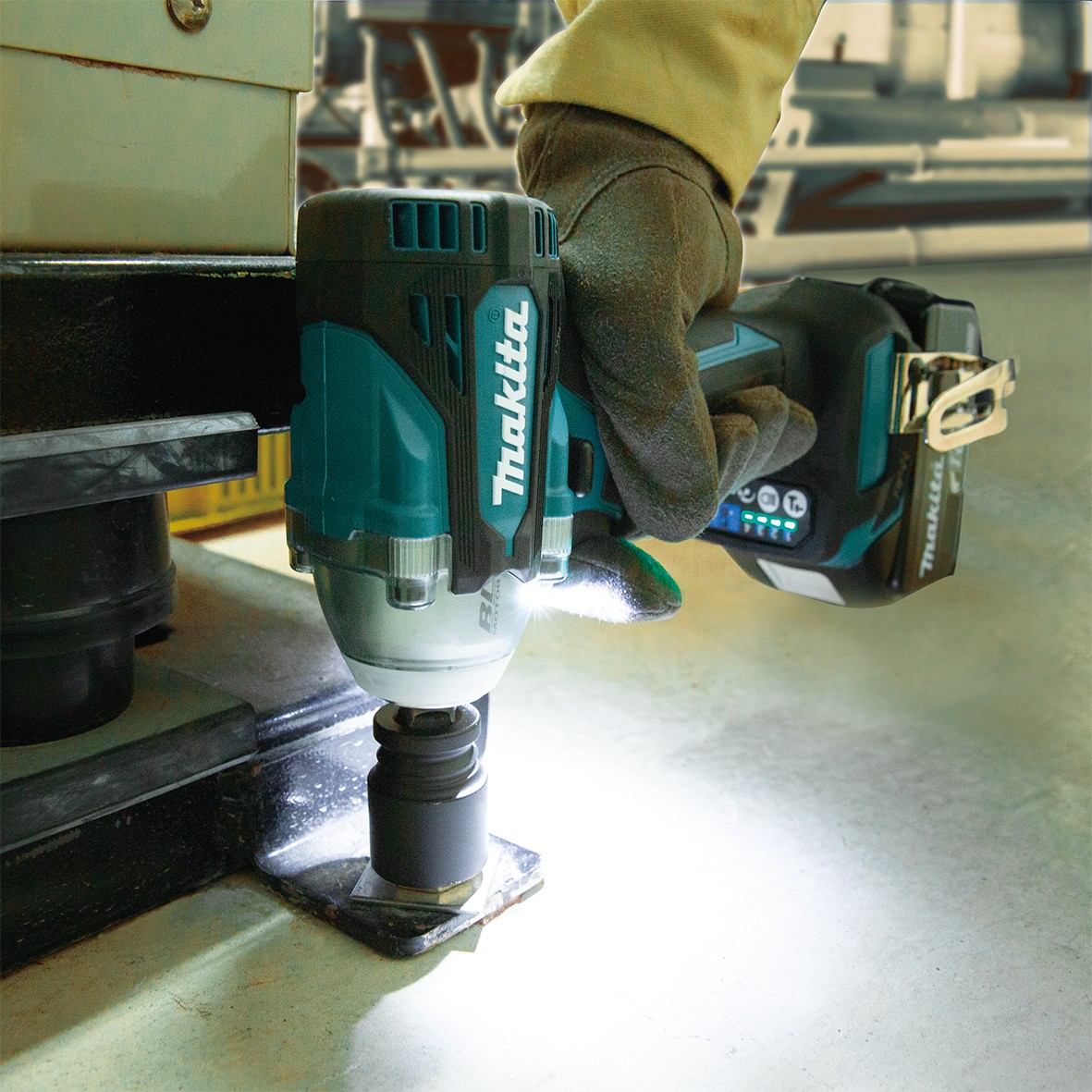

18V Brushless 3/8" Impact Wrench

- Variable speed trigger & Quick Trigger mode which engages immediate full speed
- Forward & Reverse Automatic Stop, with 6 modes for customized applications
- High power in a compact design with 300Nm maximum fastening torque

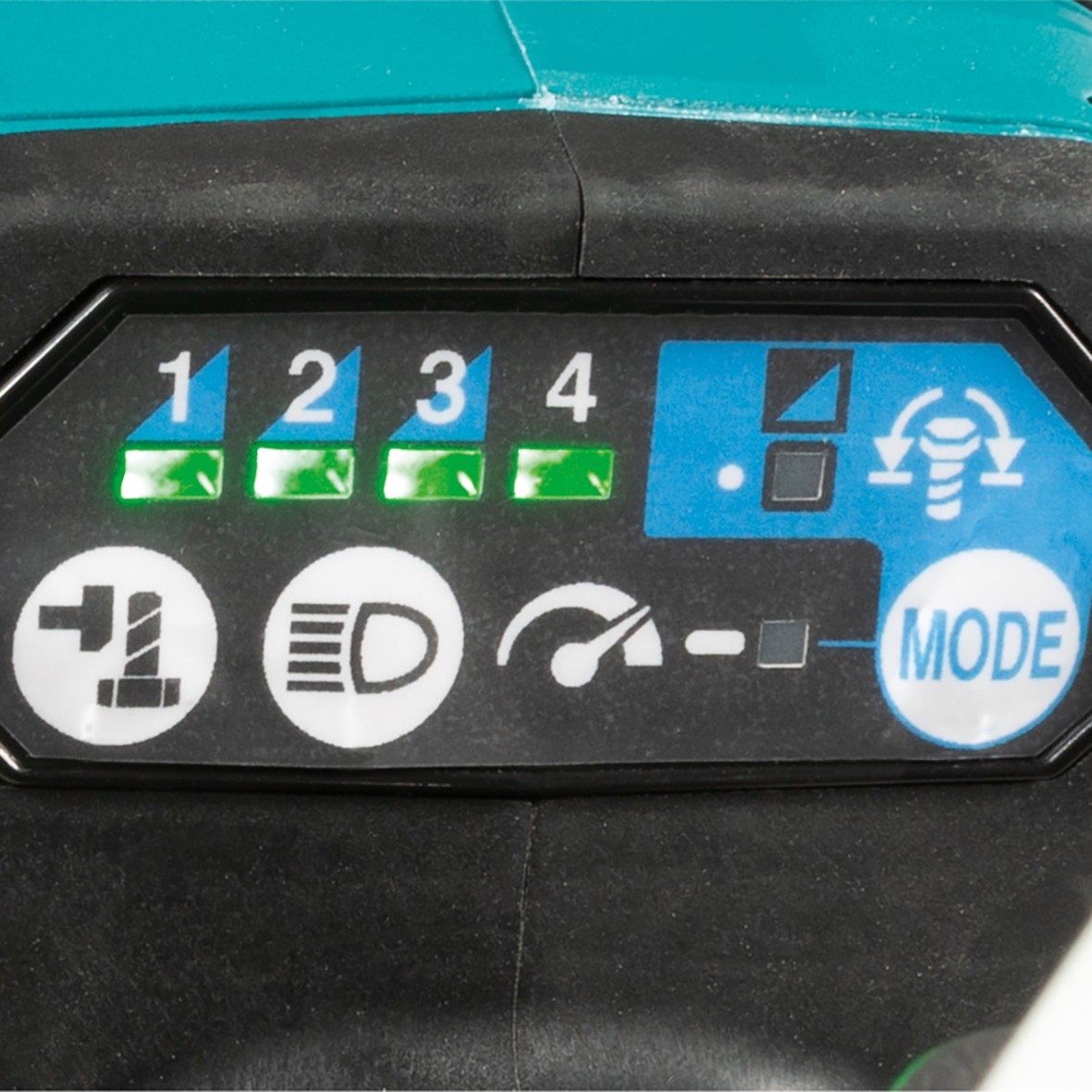

- 4 stages of impact force enables the user to set the appropriate torque for each application
- eXtreme Protection Technology (XPT) provides enhanced protection against dust and moisture

Max. capacities standard bolt	M10 - M20
Max. capacities high tensile bolt	M10 - M16
No load speed	Max: 0 - 3,200rpm High: 0 - 2,600rpm Medium: 0 - 1,800rpm Soft: 0 - 1,000rpm
Impact rate	Max: 0 - 4,000ipm High: 0 - 3,400ipm Med: 0 - 2,600ipm Soft: 1,800ipm
Max. tightening torque	Max: 300Nm Hard: 180Nm Medium: 130Nm Soft: 80Nm
Nut busting torque	500Nm
Drive shank	3/8" Square
Overall length	138mm
Skin weight	1.2kg
Weight (with battery)	1.8kg(BL1860B)
Voltage	18V

Belt clip (346317-0)
