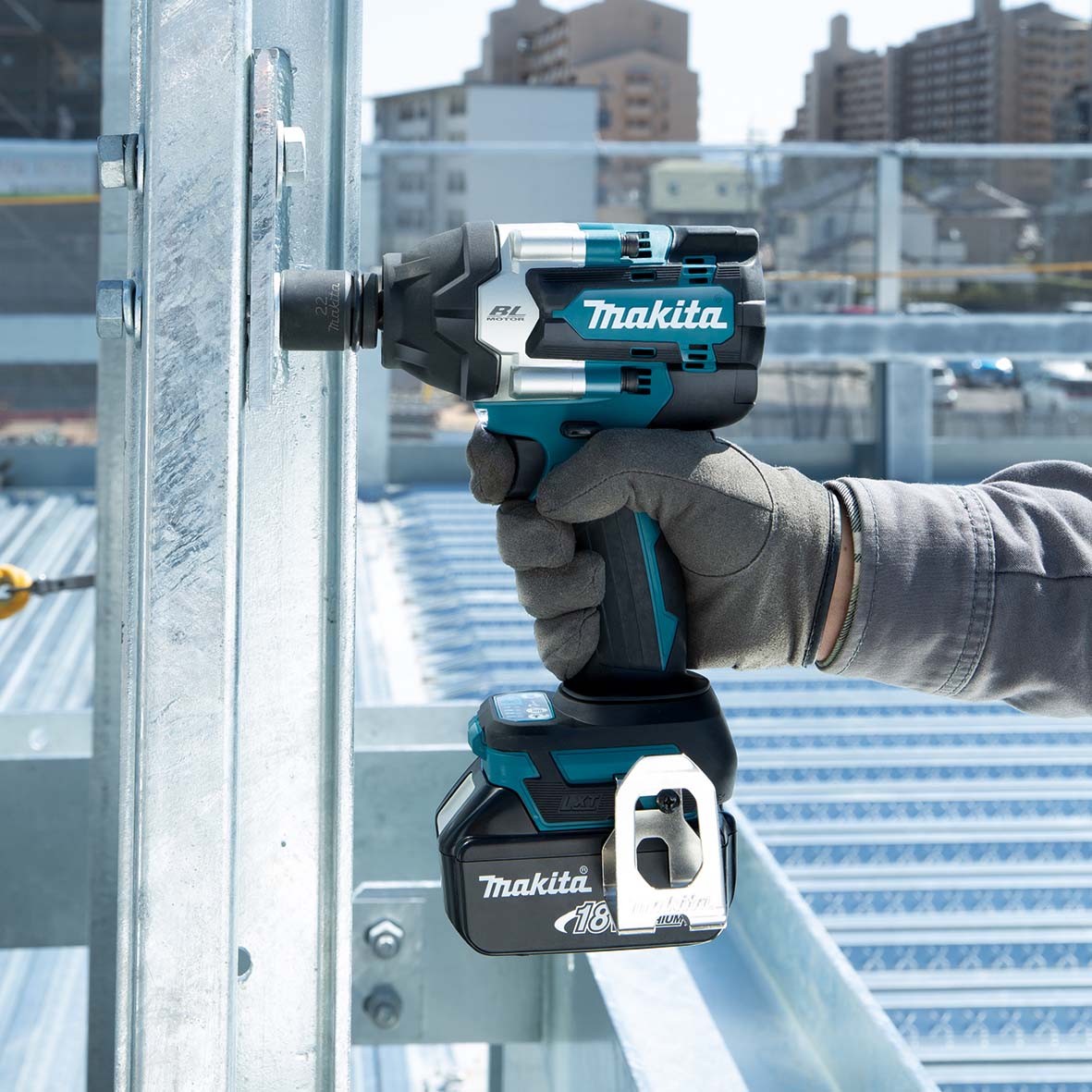

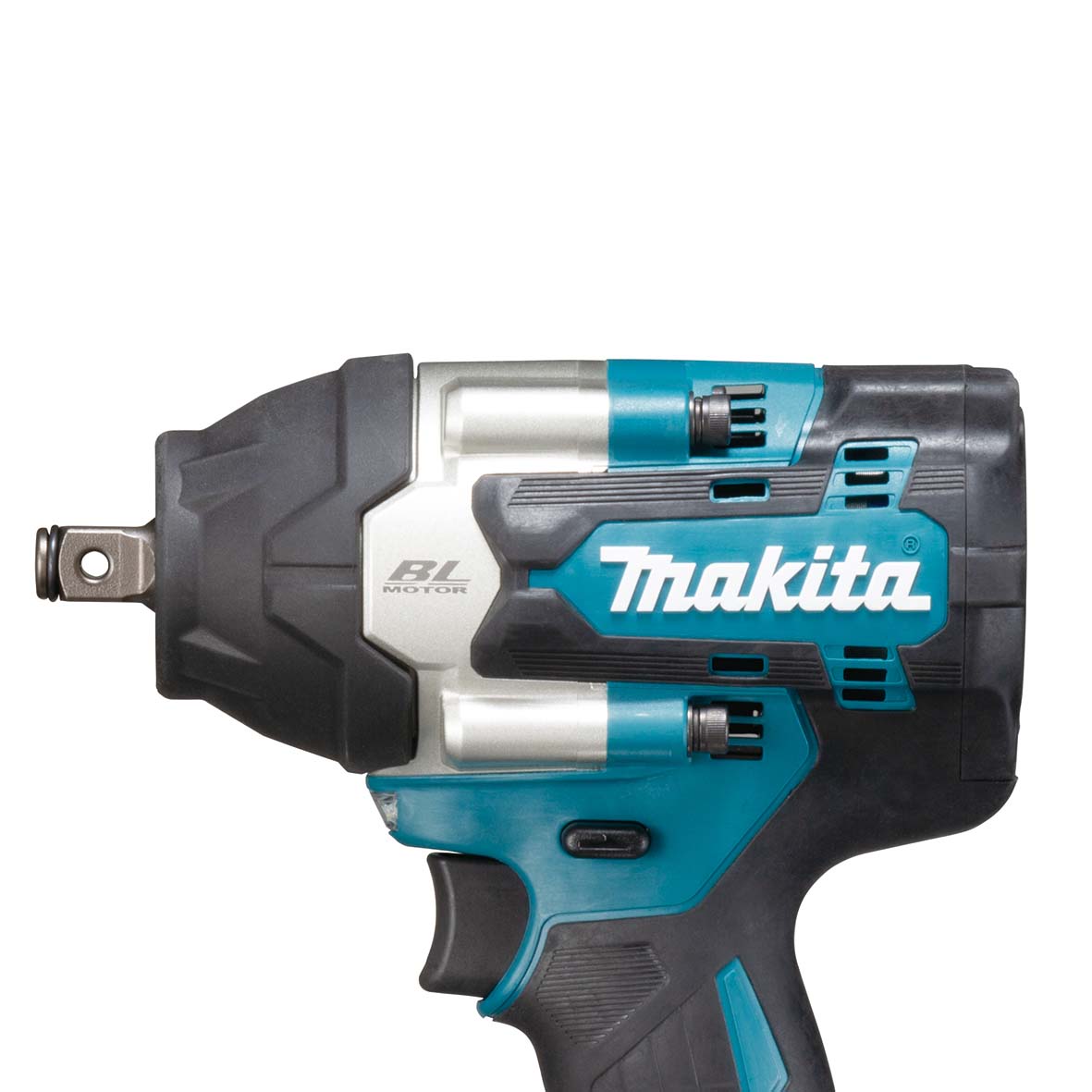

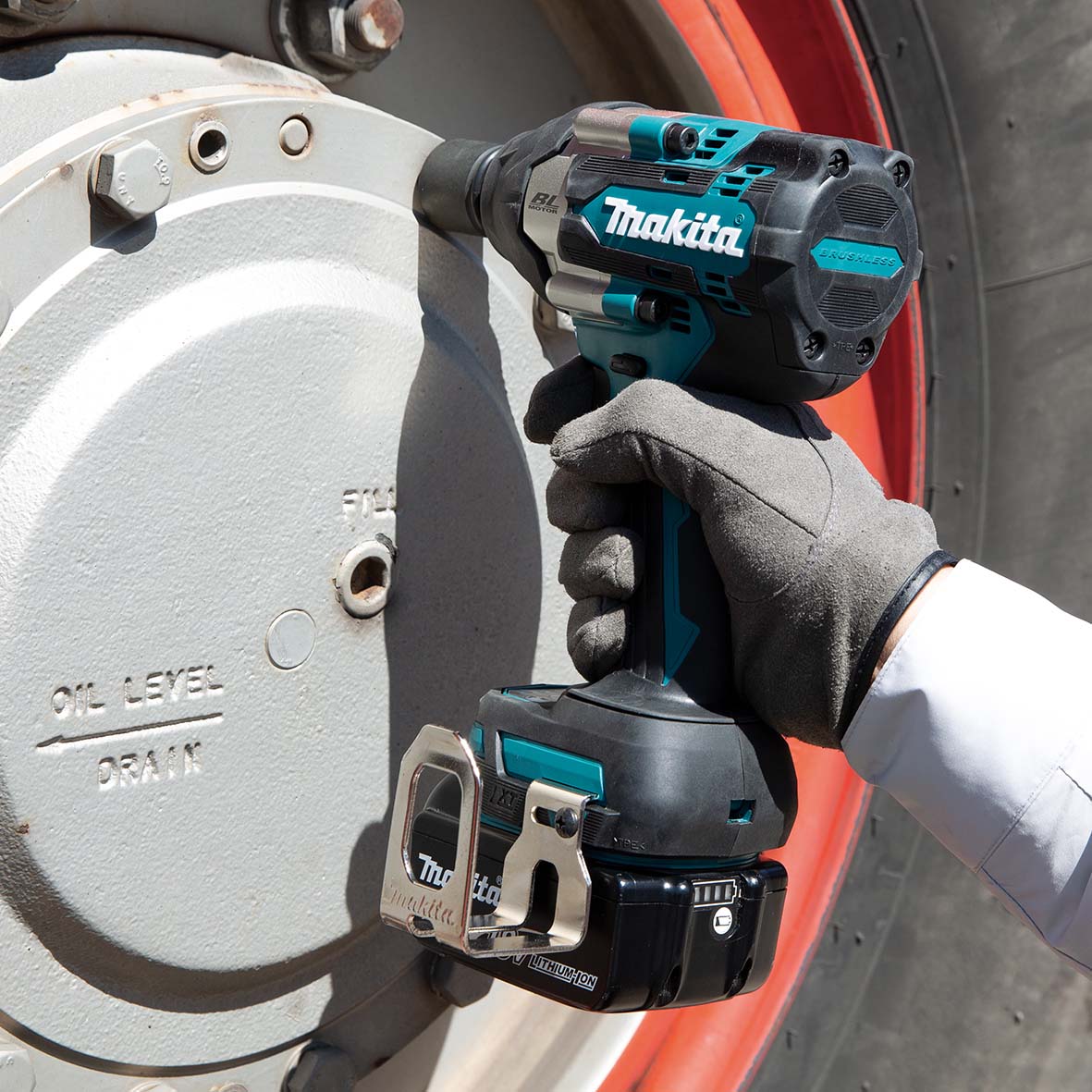

DTW700Z

18V Brushless 1/2" Impact Wrench

- Compact design for comfortable handling at only 170mm in length

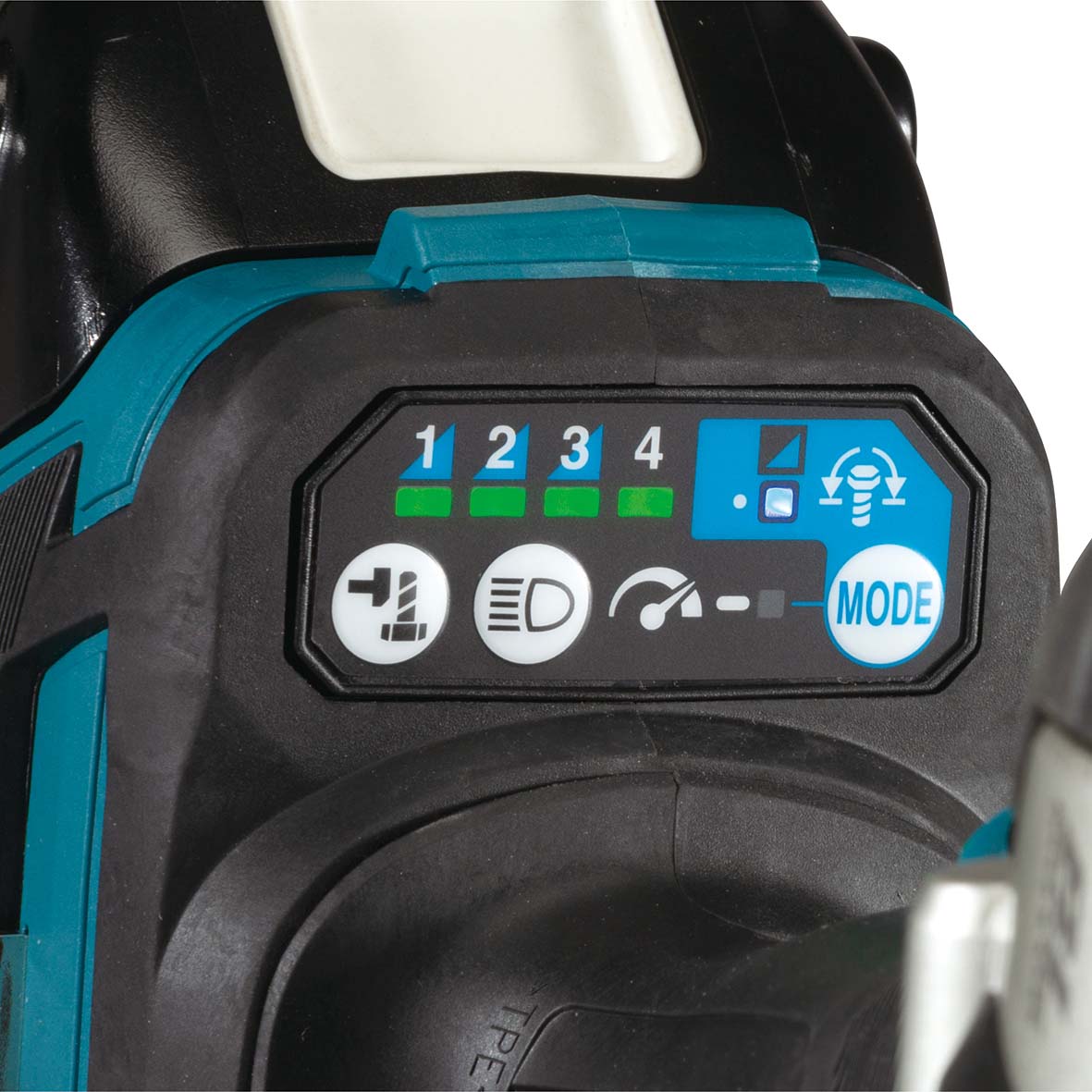

- 4 Stage power selection for optimum rpm and fastening torque
- Maximum nut busting torque of 1,000Nm with 700Nm max. fastening
- Unique rubber joint suppress vibration to battery terminals
- Forward & reverse auto stop function, optimised for fastening applications

Max. capacities standard bolt	M10 - M24
Max. capacities high tensile bolt	M10 - M16
No load speed	Max: 0-2,200rpm Hard: 0-1,900rpm Med: 0-1,200rpm Soft: 0-500rpm
Impact rate	Max: 0-2,700ipm Hard: 0-2,400ipm Med: 0- 1,700ipm Soft: 0-1,000ipm
Max. tightening torque	Max: 700Nm Hard: 320Nm Med: 200Nm Soft: 150Nm
Nut busting torque	1,000Nm
Drive shank	1/2" Square C-Ring
Overall length	170mm
Skin weight	2.1kg
Weight (with battery)	2.7kg (BL1860B)
Voltage	18V

Belt clip (347723-2)
