DLS713Z

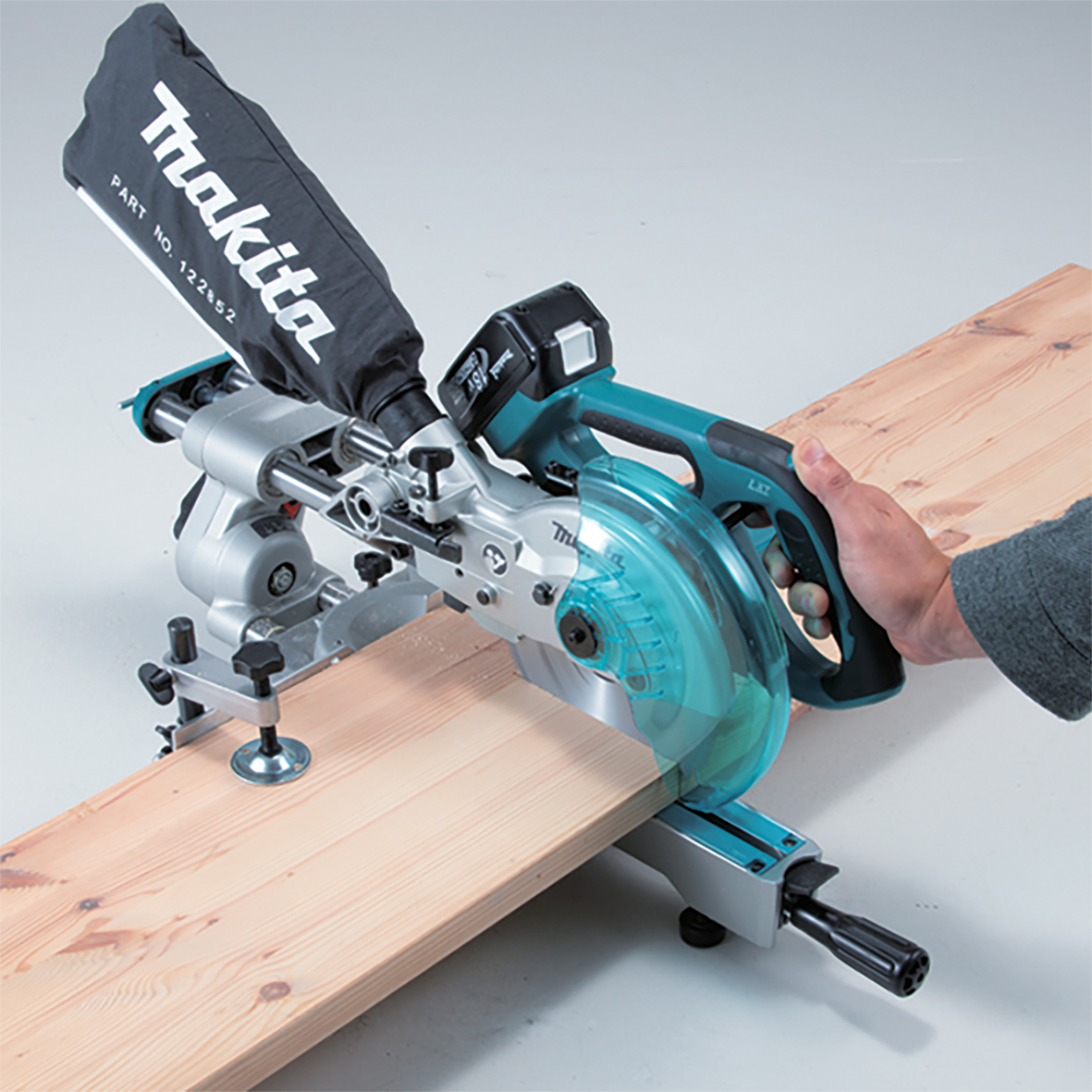

18V Mobile 190mm (7-1/2") Slide Compound Saw

  • DLS713Z-18V Mobile 190mm (7-1/2") Slide Compound Saw
  • DLS713Z-18V Mobile 190mm (7-1/2") Slide Compound Saw
  • DLS713Z-18V Mobile 190mm (7-1/2") Slide Compound Saw
  • DLS713Z-18V Mobile 190mm (7-1/2") Slide Compound Saw

Features

    • Up to 52 x 300mm cutting capacity
    • 45? left and 5? right bevel, 47? left and 57? right mitre
    • High performance 2,200rpm no load speed
    • Double sliding mechanism for smoothest possible cutting action
    • Electric brake & side rails for added safety
Where To Buy
Product Manual
Parts Diagram
  • Max. cutting capacities at 0°
    52 x 300mm
    Max. cutting capacities at 45°
    52 x 212mm
    Bevel capacity
    45° left - 5° right
    Mitre capacity
    47° left - 57° right
    No load speed
    2,200rpm
    Overall length
    655mm
    Skin weight
    11.8kg
    Weight (with battery)
    12.4kg
    Voltage
    18V

  • TCT Saw Blade 190mm
    Vertical Vice (122571-8)
    Socket Wrench (782223-9)
    Triangular Rule (762001-3)
    Dust bag (122852-0)
    Holder Set (192118-2)
