TD001GZ

40V Max Brushless Impact Driver

  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver
  • TD001GZ- 40V Max Brushless Impact Driver

Features

    • Heavy duty power with 220Nm max. torque
    • Precision fastening with enhanced anvil stability for less bit wobble

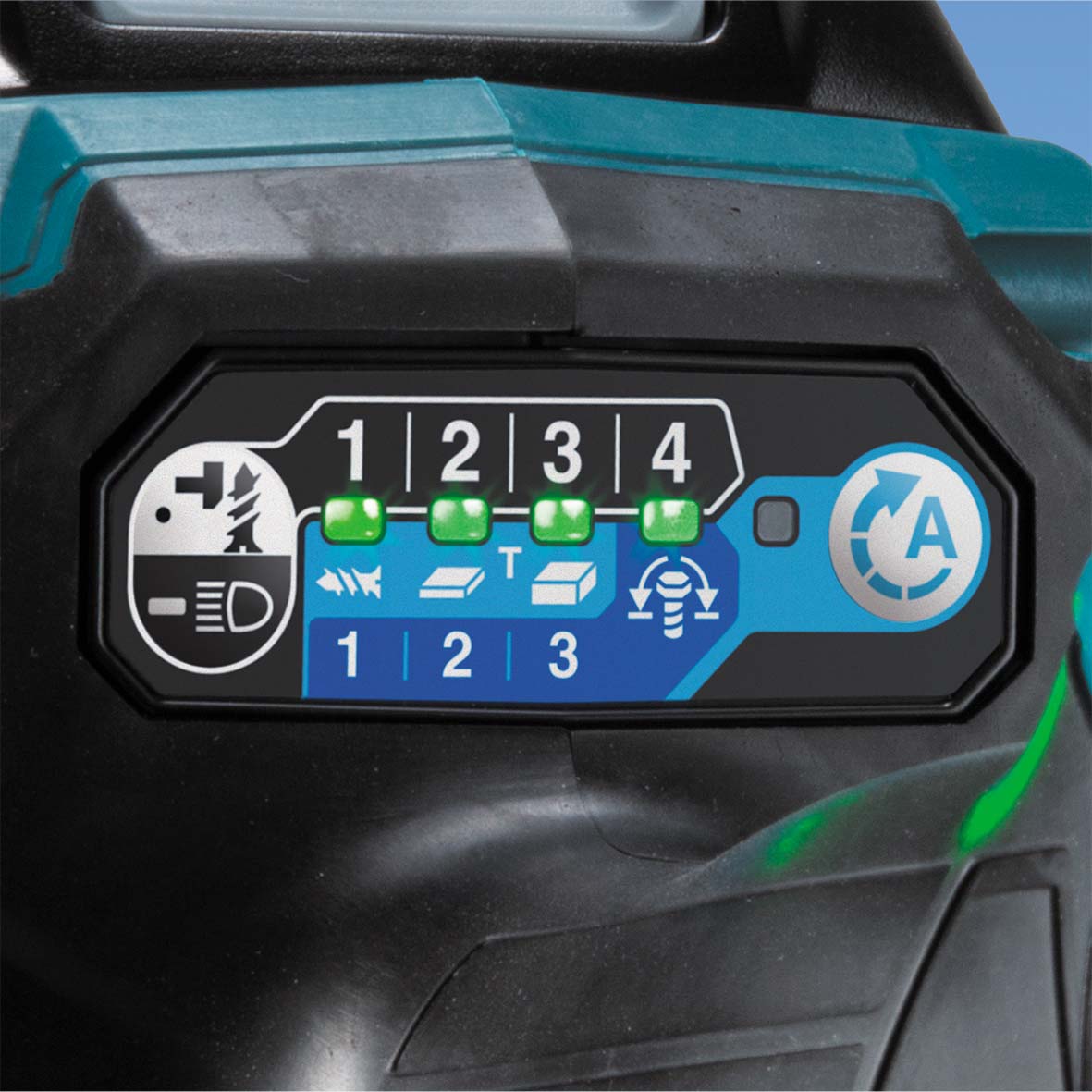

    • Optimised application selector with 6 modes adapting speed and impacts for each task

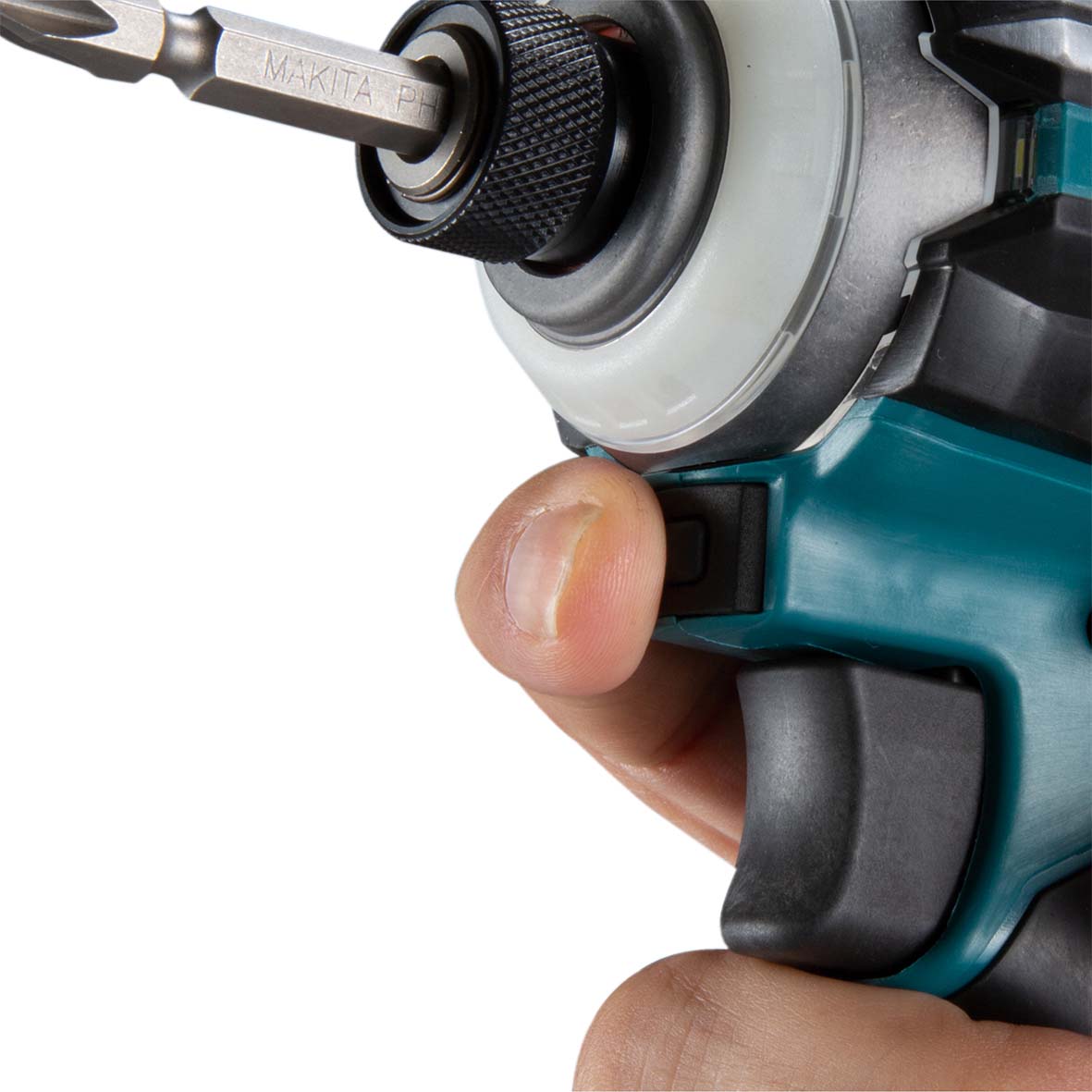

    • Single hand quick change trigger allows user to change between speeds and modes at the touch of a button
    • Constant speed control allows tool to operate at the same speed regardless of battery capacity

  • Max. capacities standard bolt
    M5 - M16
    Max. capacities high tensile bolt
    M5 - M14
    No load speed
    Max.: 0 - 3,700rpm
    Hard: 0 - 3,200rpm
    Med: 0 - 2,100rpm
    Soft: 0 - 1,100rpm
    Impact rate
    Max.: 0 - 4,400ipm
    Hard: 0 - 3,600ipm
    Med: 0 - 2,600ipm
    Soft: 0 - 1,100ipm
    Max. tightening torque
    Max.: 220Nm
    Hard: 170Nm
    Med: 50Nm
    Soft: 20Nm
    Drive shank
    6.35mm (1/4") Hex
    Overall length
    120mm
    Skin weight
    1.0kg
    Weight (with battery)
    2.0kg (BL4040)
    Voltage
    40V Max
  • Belt hook assembly (346317-0 & 251314-2)
