TW004GZ

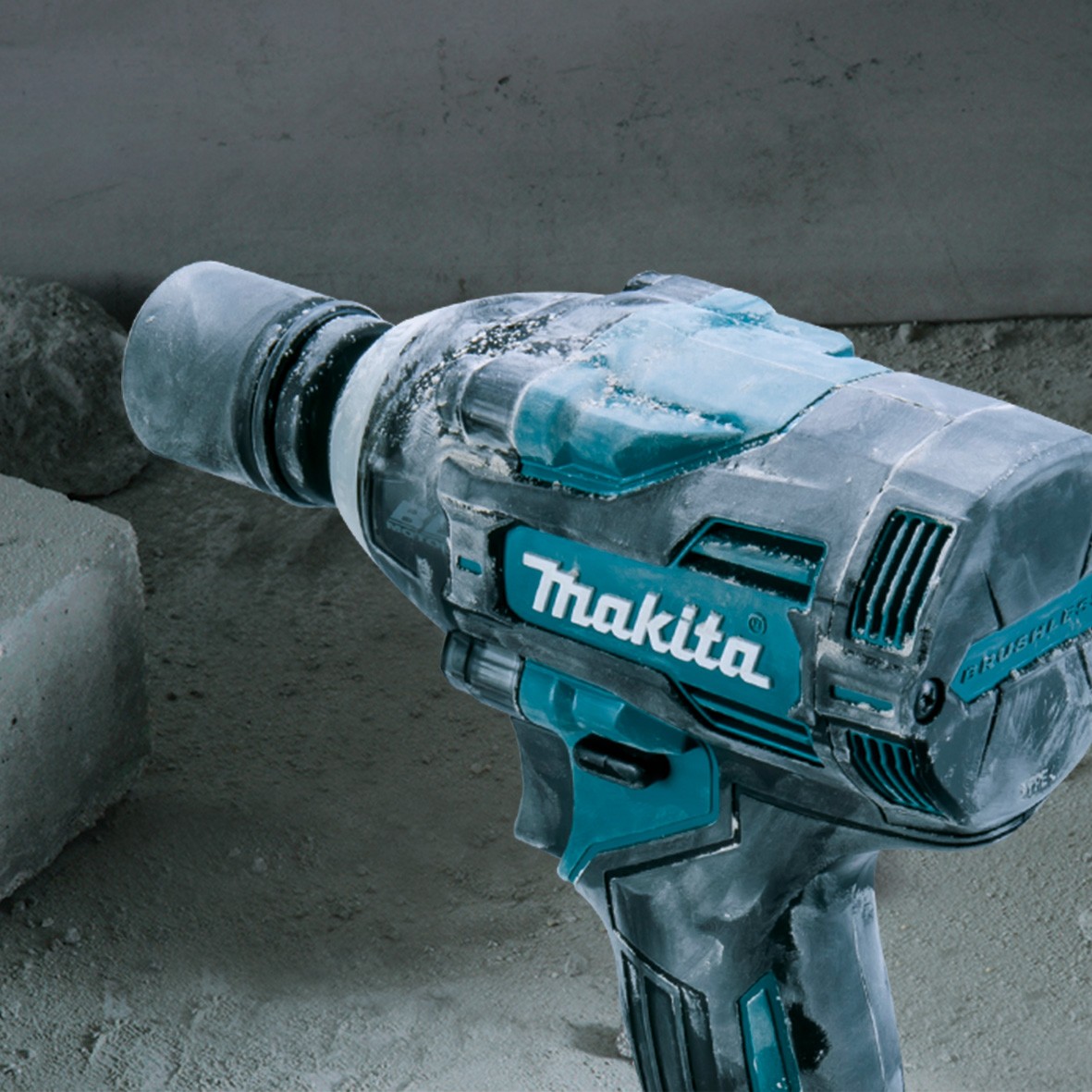

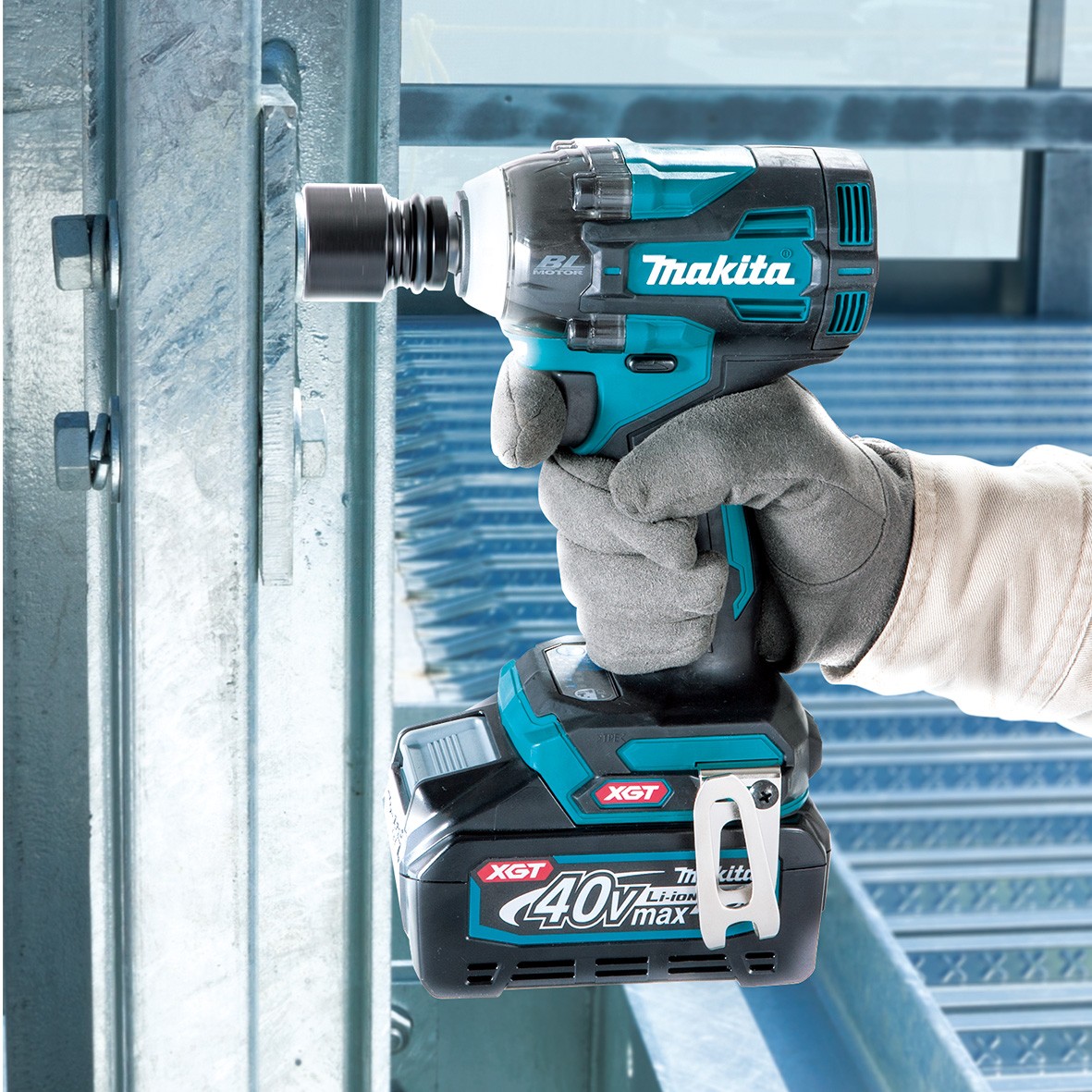

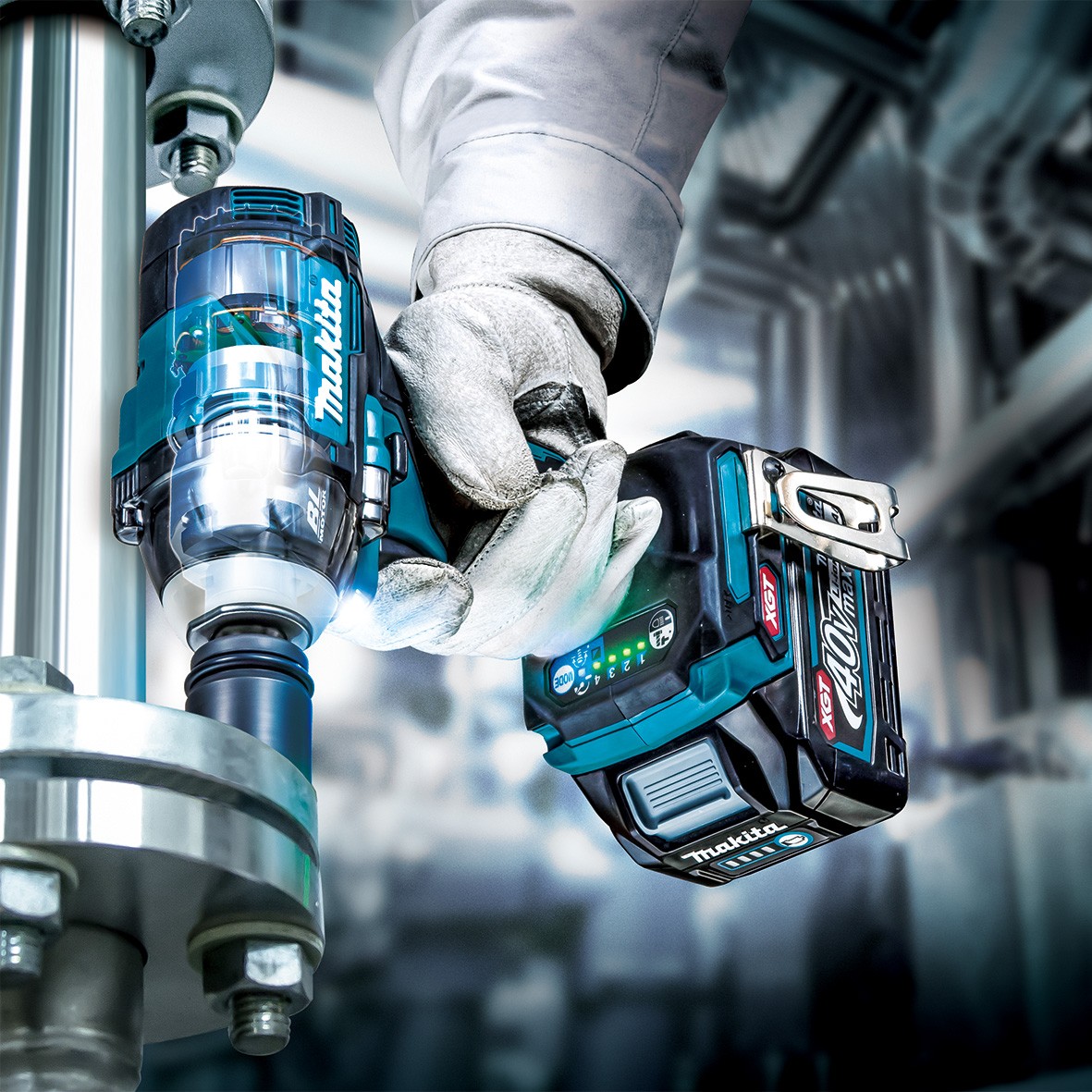

40V Max Brushless 1/2" Impact Wrench

- High power in a compact design with 630Nm nut busting torque
- 40V Max XGT battery continues to perform in continuous heavy duty application

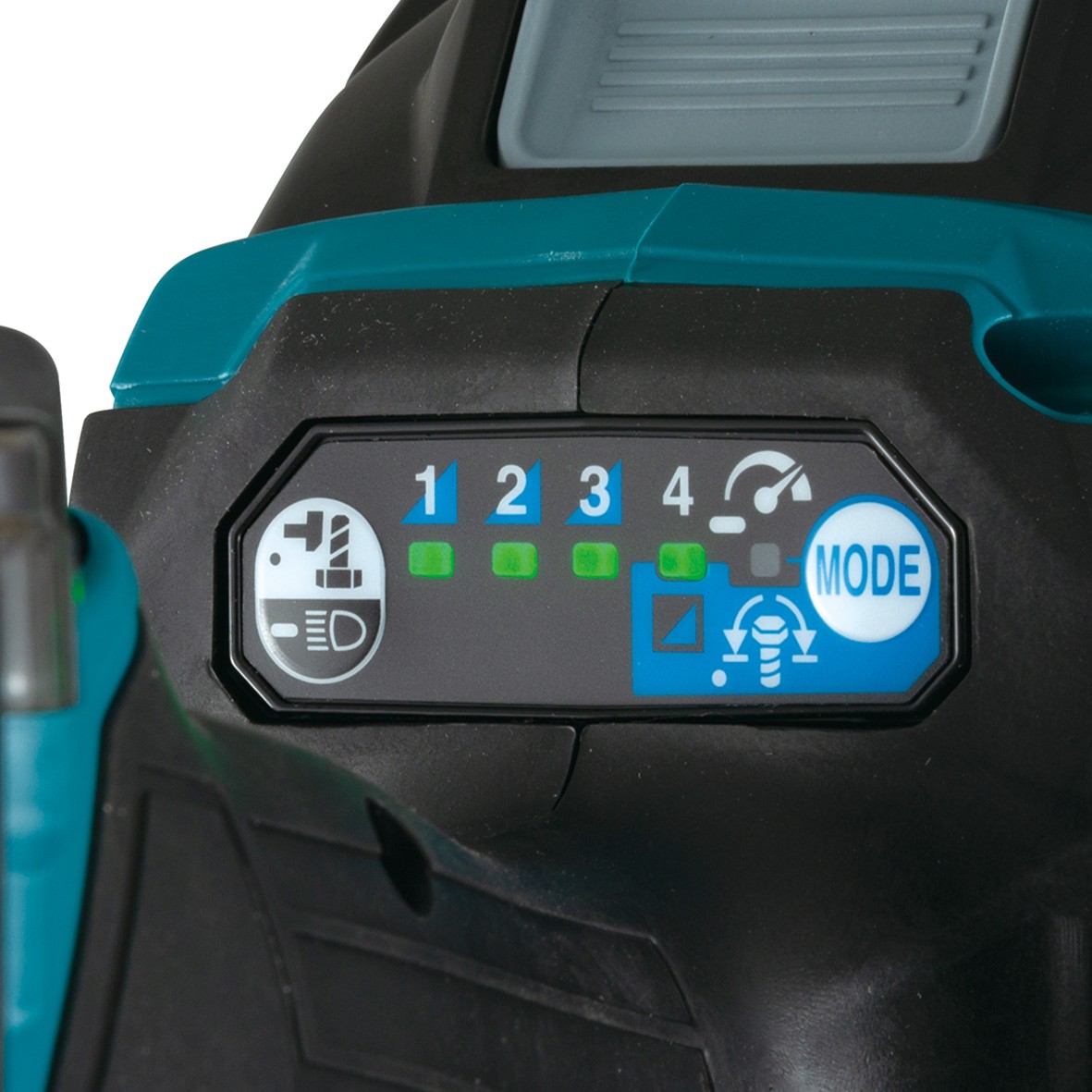

- Optimised application selector with 6 modes adapting speed and impacts for each task
- Full speed mode shortens the distance of trigger travel required to hit full speed
- 4 Stage power selection for optimum rpm and fastening torque

Max. capacities standard bolt	M10-M20
Max. capacities high tensile bolt	M10-M16
No load speed	Max: 0 - 3,200rpm Hard: 0 - 2,600rpm Med: 0 - 1,800rpm Soft: 0 - 1,000rpm
Impact rate	Max: 0 - 4,000ipm Hard: 0 - 3,400ipm Med: 0 - 2,600ipm Soft: 0 - 1,800ipm
Max. tightening torque	Max: 350Nm Hard: 210Nm Med: 160Nm Soft: 100Nm
Nut busting torque	630Nm
Drive shank	1/2" Square C-Ring
Overall length	144mm
Skin weight	1.2kg
Weight (with battery)	2.2kg (BL4040)
Voltage	40V Max

Belt hook assembly (346317-0 & 266622-8)
